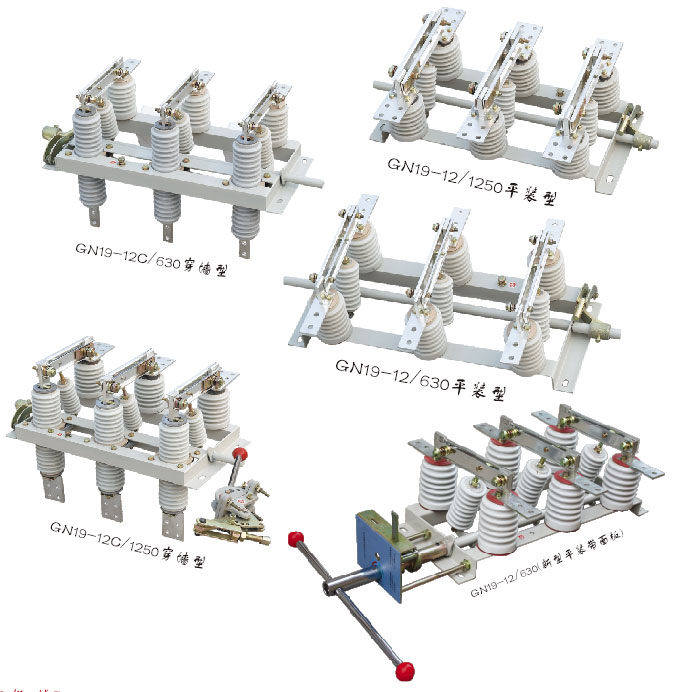

GN19-12 series indoor high voltage disconnector

GN19-12 series indoor high voltage disconnector

feedbackfeedback
Product Description

Summary
GN19-12 series indoor high voltage disconnector (hereinafter referred to as disconnector) is a indoor device with rated voltage of 12 kilovolts and three-phase AC of 50 hertz.

Use of environmental conditions:
A. Installation sites shall be free of gases, steam, chemical deposits, salt spray, dust, dirt and other explosive and corrosive substances that seriously affect the insulation and conductivity of disconnectors.
B. Installation site should be free from frequent violent vibration.

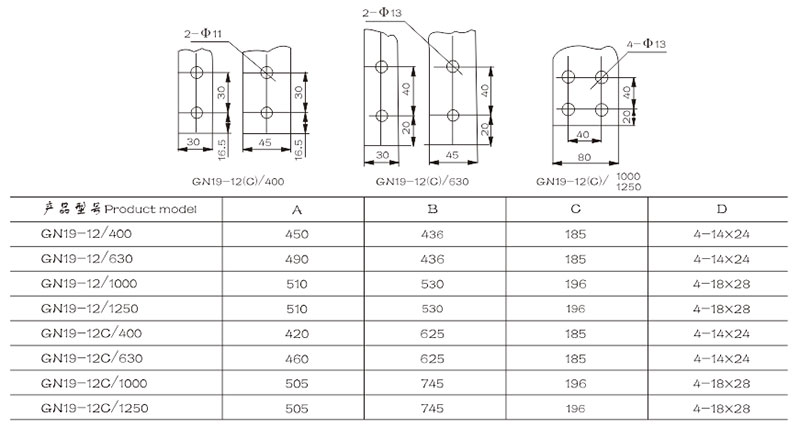

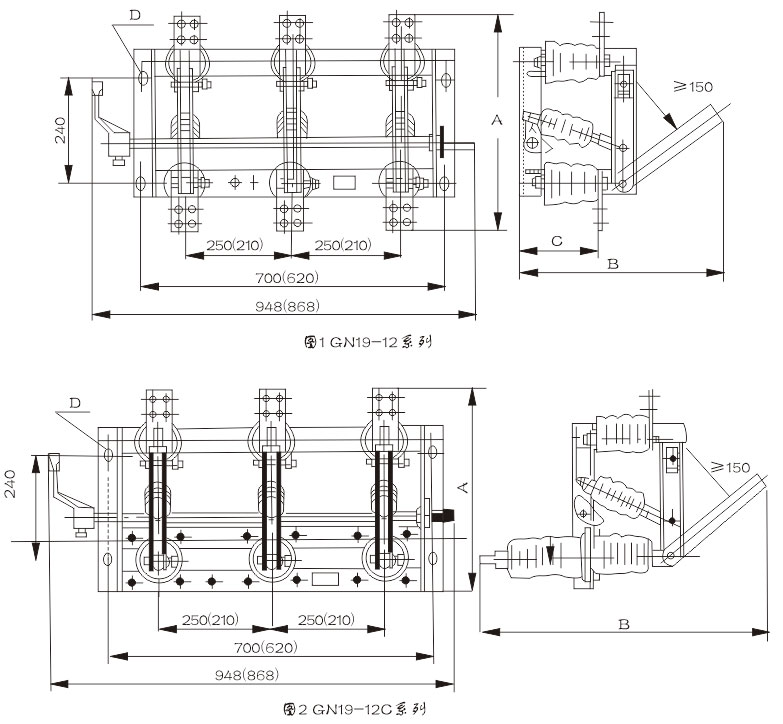

Shape and installation dimensions
