Porcelain Type Fuse Cutout PD-1(F) 15KV~27KV
Product Description

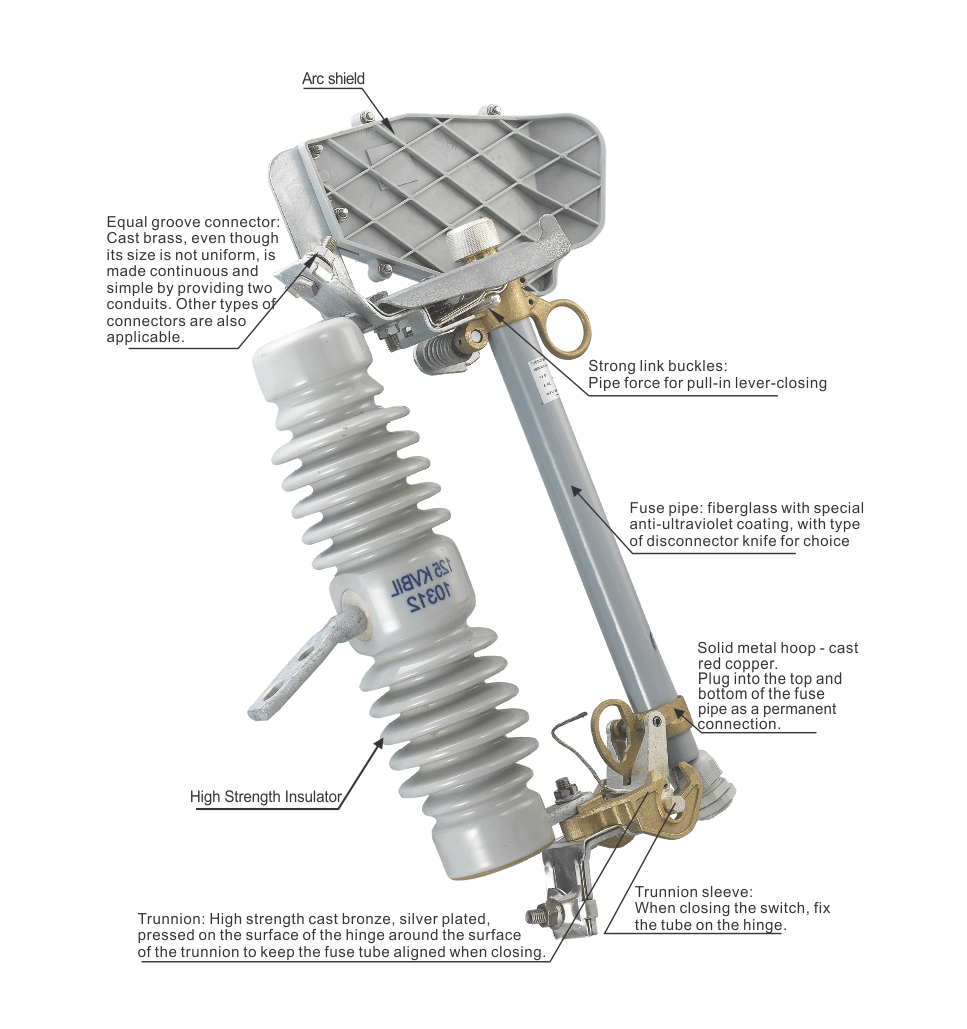

Features
Moistureproof fuse has not blister, deformation,oprn,large capacity,UV,long life; Superior electric properties,dielectric strength and excellent mechanical stiffness and consecrated ability
- Easy fuse link installation — even with gloved hands
- Easy fuse tube insertion (and removal)
- Superb alignment when closing — from any angle and under adverse conditions of light and weather
- No fuse link breakage
- Completely reliable dropout action — regardless of fault-current level
- The wholeorganization to neutral,covenient installation,safe and reliable
Descriptive Bulletin
Ratings
| System Voltage(Kv) | Rating | Leakage Distance to Ground, Minimum |
Size | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KV | Amperes, RMS | ||||||||||
| Nom. | Max | BIL | Cont. | Interr.,Asym. (60Hz) | Inches | mm | Weight(Kg) | Dimension(Cm) | |||
| Sym. | Asym. | ||||||||||
| 12 thru 15 | 14.4 | 15 | 110 | 100 | 6 300 | 9 300 | 9'8" | 250 | 6.5 | 40*36*11.5 | |
| 200 | 10 000 | 15 300 | |||||||||
| 15 thru 27 | 15 | 27 | 125 | 100 | 8 000 | 12 000 | 12'5" | 320 | 7.5 | 50*36*12.5 | |
| 200 | 12 500 | 18 000 | |||||||||
| 24 thru 27 | 24 | 27 | 150 | 100 | 8 000 | 12 000 | 20'8" | 530 | 12 | 50*38*16 | |
| 200 | 12 500 | 18 000 | |||||||||
| 33 thru 36 | 33 | 36 | 170 | 100 | 10 000 | 15 300 | 28'3" | 720 | 15 | 64*35*18 | |
| 200 | 12 500 | 18 000 | |||||||||

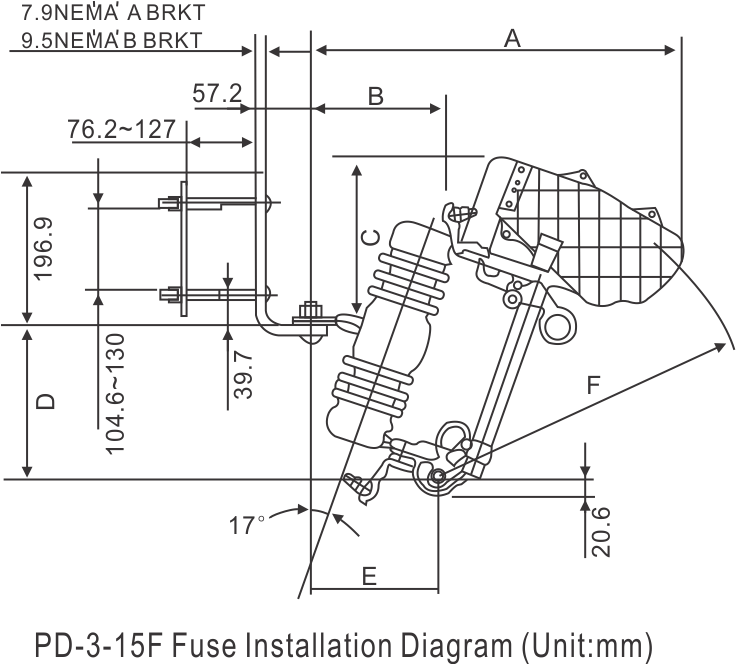

Mechanical Drawing
