Product Description
SUMMARY
ZN23-40.5 type vacuum circuit breaker rated voltage 40.5kV, three-phase AC 50Hz indoor high voltage electrical equipment, applicable to industrial and mining enterprises, power transmission and distribution system of substation, control and protection switch, especially suitable for metallurgy, electric arc steelmaking frequent operation of the industry, as a control and protection equipment.
This product conforms to GB1984-89 "high voltage circuit breaker" standard.

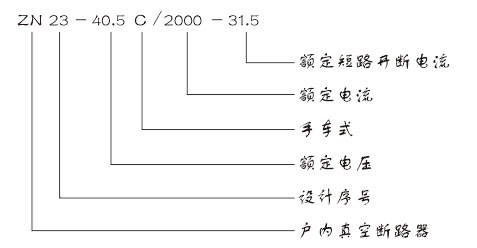

MODEL & IMPLICATIONS

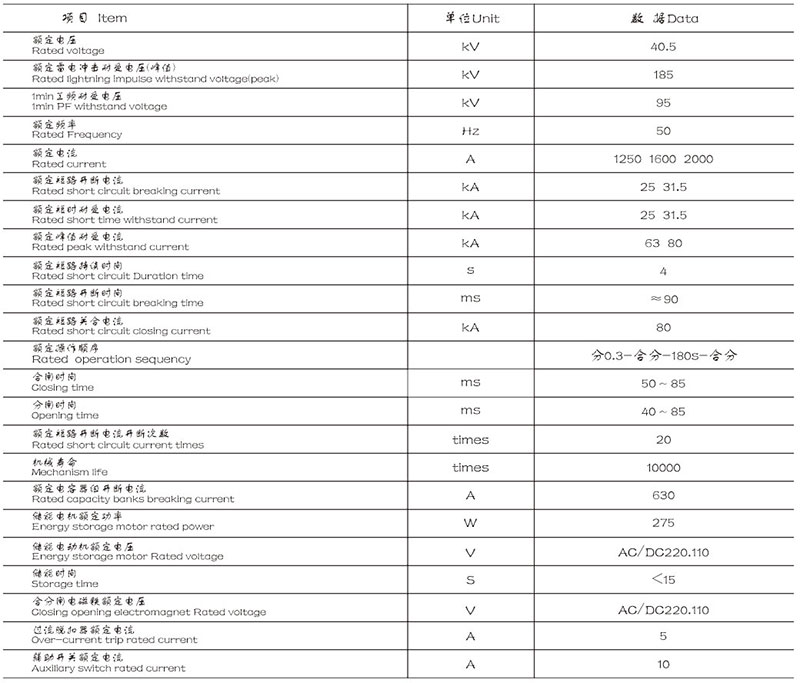

MAIN TECHNICAL PARAMETERS

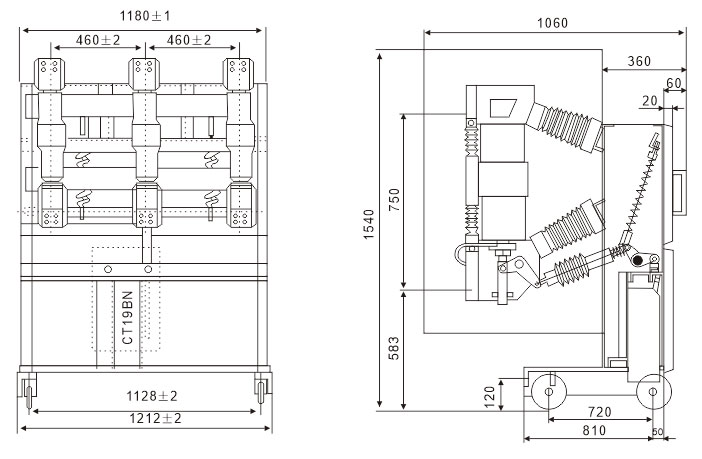

Outline & Installation Dimensions
