ZW37-40.5 type outdoor AC vacuum circuit breaker

SUMMARY

ZW37-40.5 type outdoor AC vacuum circuit breaker for rated voltage 40.5kV, three-phase AC 50Hz outdoor high voltage switch equipment. The load current, overload current and short circuit current of the power system are mainly used for opening and closing the power system.
Applicable to substations, industrial and mining enterprises and urban and rural power grid protection and control, especially suitable for frequent operation places and city network distribution network automation.
The product meets the following criteria:
GBT1984 high voltage AC circuit breaker;
Common technical requirements for GB/T11022 high voltage switchgear and control equipment standards;
DT402 AC high voltage circuit breaker ordering technical conditions.

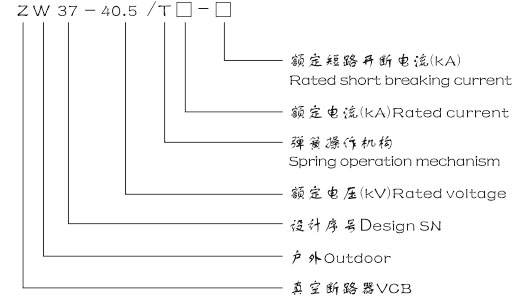

 MODEL & IMPLICATIONS

Using Environmental Conditions

1, the elevation is not more than 1000m.
2, ambient temperature: -35 degrees to +40.
3, relative humidity: the monthly average of not more than 90%, the average relative humidity is not more than 95%;
4, the earthquake intensity is not more than 8 degrees.
5, environmental pollution tolerance value: grade IV.
6, icing thickness: 20mm.
7, the air pressure is not more than 700Pa (equivalent to the wind speed 34m/s).
8, the installation site should be no flammable, explosive, corrosive substances and often violent vibration place.

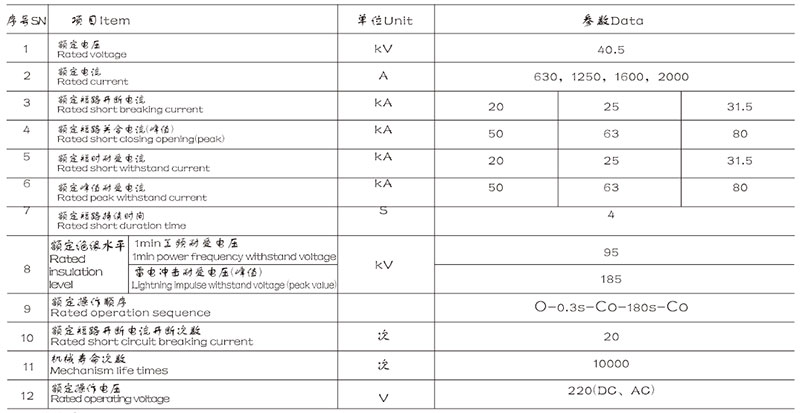

MAIN TECHNICAL PARAMETERS

Note: when the product is used at an altitude of more than 1000m, the insulation level is carried out according to the corresponding correction factor.

Product features

1, miniature vacuum arc extinguishing chamber:The maximum reliability, long working life, encapsulated in solid sealed pole (solid).
2, solid sealing pole:In line with environmental protection requirements, has been widely validated outdoor performance, resistance to ozone and ultraviolet, fastening, light, not easy to crack, easy to transport.
3, the design structure is reasonable:Sealed pole support insulator, the upper part of the sealed pole, the lower support insulator, with insulating rod and long rod, three-phase support insulator mounted on a common mechanism box, interrupter moving through the output end of the pull rod and the mechanism of the shaft is connected with the moving end of the vacuum interrupter.The connecting rod is connected with the output shaft of the mechanism to move directly to the mechanism output shaft. Safe and reliable, and maintenance of edge.
4, with automatic distribution interfaceCan be flexible with sports auxiliary contacts, to meet the requirements of distribution automation.
5, high parameters, high performance:Rated current can reach 2000A, rated short circuit breaking current is 31.5kA.
