ZW43A-12F type outdoor high intellgent voltage vacuum circuit breaker

ZW43A-12F type outdoor high intellgent voltage vacuum circuit breaker

feedbackfeedback
Product Description

SUMMARY
ZW43A-12F type outdoor high intellgent voltage vacuum circuit breaker is rated voltage 12kV, three-phase AC 50Hz outdoor high voltage switch equipment. The load current, overload current and short circuit current of the power system are mainly used for opening and closing the power system. The system is suitable for the protection and control of substation, industrial and mining enterprises and urban and rural distribution network, especially for the operation of frequent locations and city network automation distribution network. Meet the following standards: GB/T1984 "GB/T11022", a high-voltage AC circuit breaker "high voltage switch equipment and control equipment standard technical requirements", "common DL/T402 AC high voltage circuit breakers ordering technical conditions"......

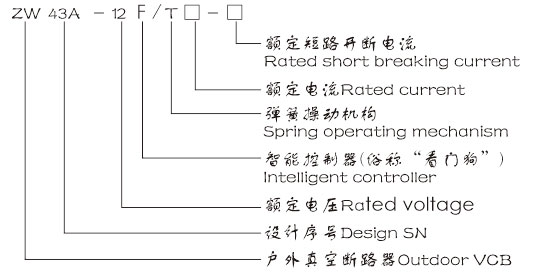

MODEL & IMPLICATIONS

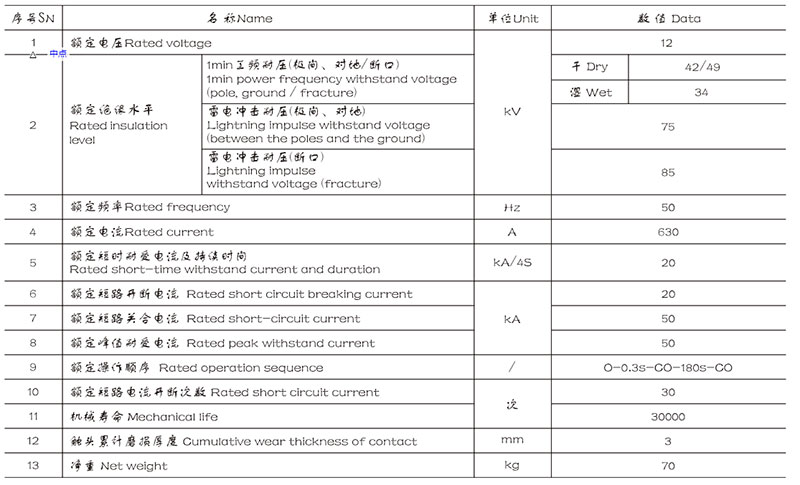

MAIN TECHNICAL PARAMETERS

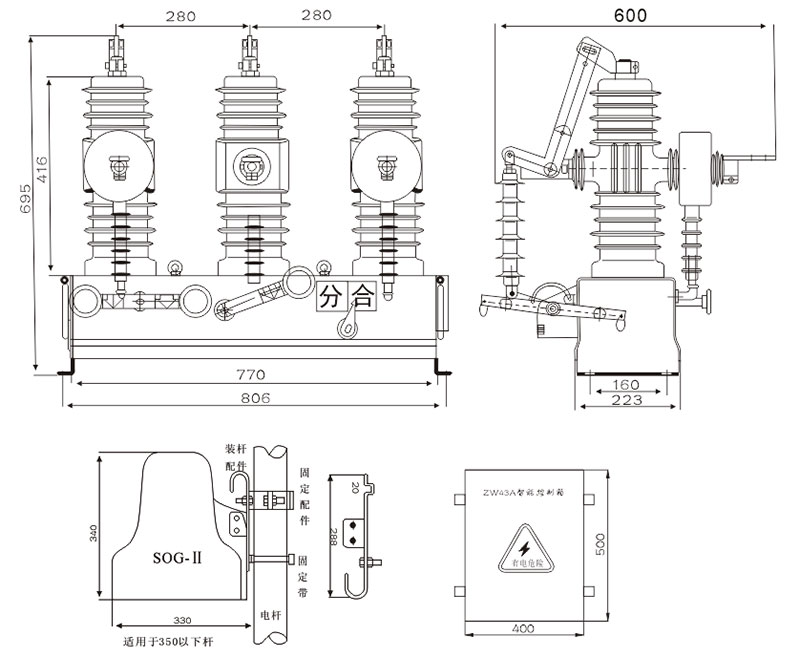

OUTLINE & INSTALLATION DIMENSIONS
