Product Description

 Summarize

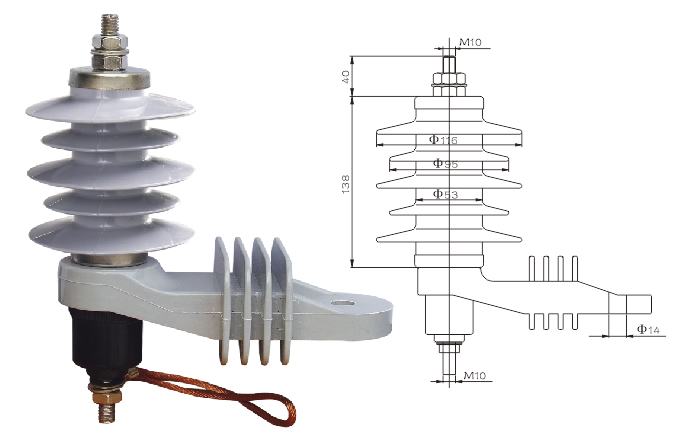

The metal oxide surge arrester(MOA)is the most advanced over-voltage protector in the word.The metal oxide varistors(MOV),as the core organ, made under japanese technology license.lt have good response to steep front surge, excellent volt-ampere  characteristics and high discharge capability,which provides a very consistent protection merit at steep front surge,lighting surge  and switching surge,and enhances protective capability.
The polymeric house,as a new generation of insulation,is characterized by small size,light weight,high strength,resistant to heavy pollution and free from cleaning maintenance.
The product has been confirms by the chines national center for quality supervision and test of insulators and surge arresters.
The technical performance of the product conforms to IEC60099-4 standard technical requirements.

 Condition of use

★The ambient air themperatures is no higher than+40℃,no lower than-40℃.
★The altitude above sea level dose not exceed 2000m.
★AC system frequency is 50Hz or 60Hz.
★AC voltage brought to bear on arrester for a long time does not exceed arrester′s continuous operating voltage.
★Maximum wind speed dose not exceed 35m/s.
★The earthquake intensity does not exceed 7 degrees.

 Designation of type letters

The technical parameters of typical
