VBP type indoor HV sealed vacuum circuit breaker

VBP type indoor HV sealed vacuum circuit breaker

feedbackfeedback
Product Description

SUMMARY
VBP type indoor HV sealed vacuum circuit breaker is developed, the company's new generation of vacuum circuit breaker, VBP vacuum circuit breaker used in indoor air switch insulation, for control and protective effect of AC 50Hz, rated voltage 12Kv and below the power grid, VBP vacuum circuit breaker fault current situation in need of frequent operation and excellent performance, fully meet the requirements of automatic reclosing and reliable operation and high life.VBP in the switch cabinet installed in the form that can be fixed, can also be installed in the car.
VBP can be installed on the kVN28 and KYN96 type switch cabinet or complementary to other armoured cabinet; provide the rated current is 630A, 1250A, 1600A VXG, can be installed in the 650mm switchgear cabinet width;
VBP solid sealed vacuum circuit breaker is in compliance with GB, IEC and DL standards and specifications; GB/T11022, IEC 60694 high voltage switchgear and control equipment standard common technical conditions; GB1984, DL403, JB3855 AC high voltage circuit breaker.

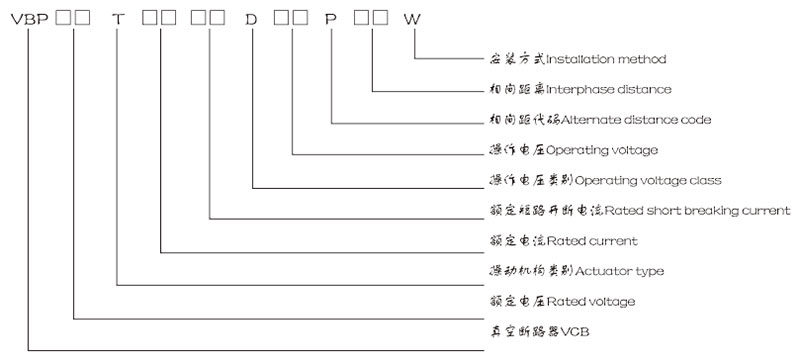

 MODEL & IMPLICATIONS


Note:Actuator type: T - spring operating Mechanical M - on behalf of the permanent magnet electric actuator Operating voltage categories: D - on behalf of the DC A - on behalf of the exchange; installation of categories: W - hand cart type F - on behalf of the fixed

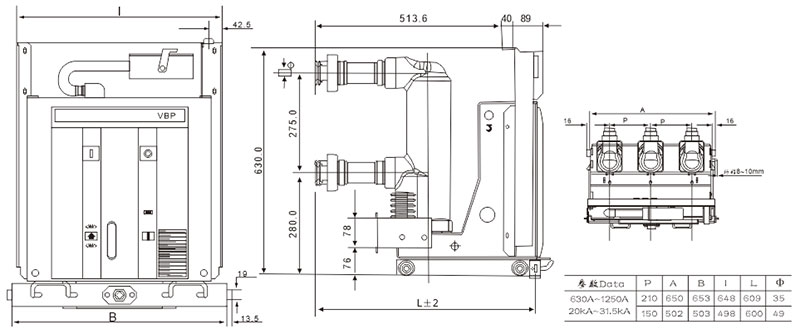

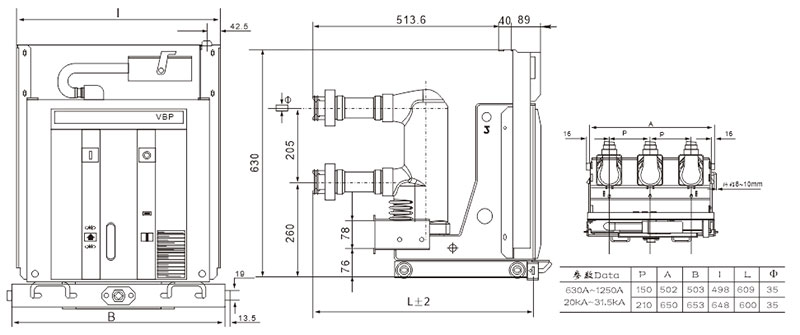

Outline & Installation Dimensions
