VS1-12 type indoor high voltage vacuum circuit breaker

SUMMARY
VS1-12 type indoor high voltage vacuum circuit breaker system, three-phase AC 50Hz rated voltage for indoor switchgear 12kV power system, as a protection of power equipment, industrial and mining enterprises of power equipment and control unit. Applicable to the requirements in the rated operating current frequent operation, or a number of short circuit current location.
The circuit breaker adopts the operating Mechanical and the circuit breaker body integral design, which can be used as a fixed installation unit and a special propelling Mechanical, which is composed of a hand vehicle unit.

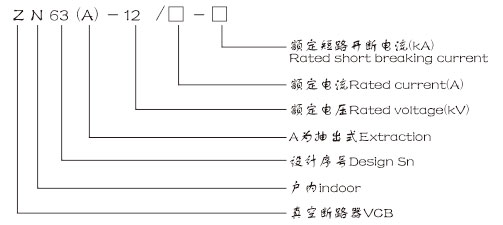

MODEL & IMPLICATIONS
