Product Description
SUMMARY

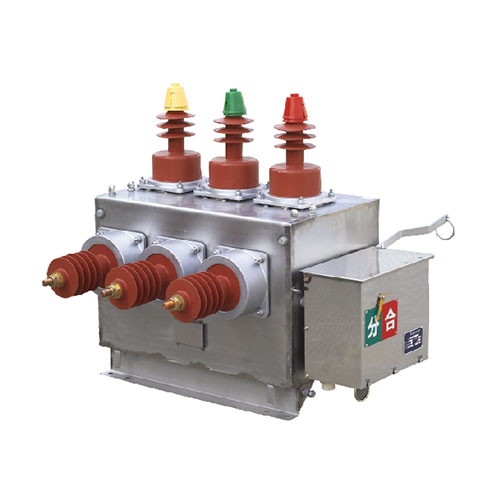

ZW10 - 12G/T630 - 12.5/16/20 type outdoor high voltage vacuum circuit breaker is the three-phase AC outdoor high voltage switch equipment, mainly used for 12KV grade, rated current 630A, rated frequency of 50HZ city network, rural power grid, mines, railways, ports and distribution system, especially suitable for outdoor overhead lines, points and load current, overload current, short-circuit current, switch and protection of power grid.

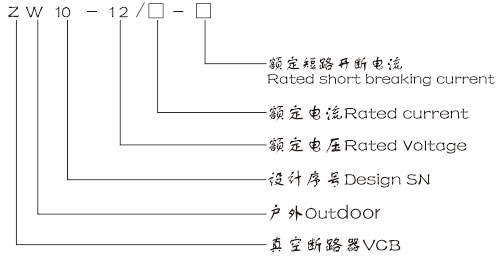

MODEL & IMPLICATIONS

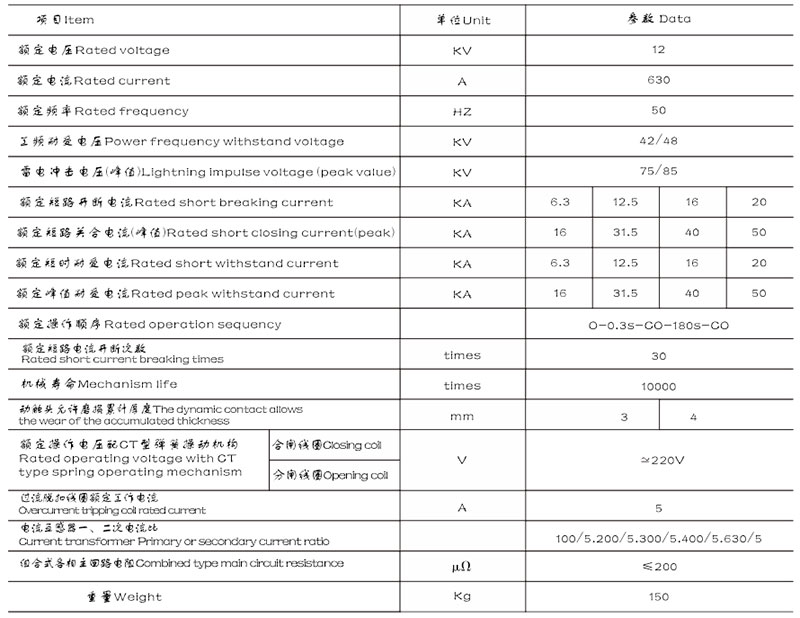

MAIN TECHNICAL PARAMETERS

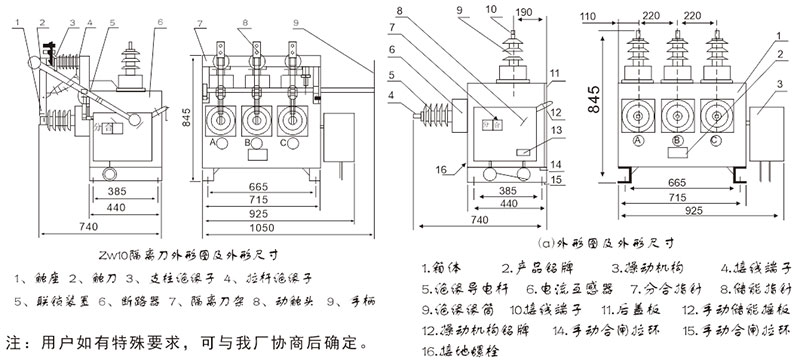

Outline & Installation Dimensions
