ZW6-12/630-16 (20) type outdoor high voltage vacuum circuit breaker

ZW6-12/630-16 (20) type outdoor high voltage vacuum circuit breaker

feedbackfeedback
Product Description

SUMMARY

ZW6-12/630-16 (20) type outdoor high voltage vacuum circuit breaker is suitable for 12KV and below, AC 50HZ three-phase power system. Mainly for rural and urban network for points, and load current, overload current and short circuit current and can be used in other similar places, but also can be used as switches in city level power grid 12KV.

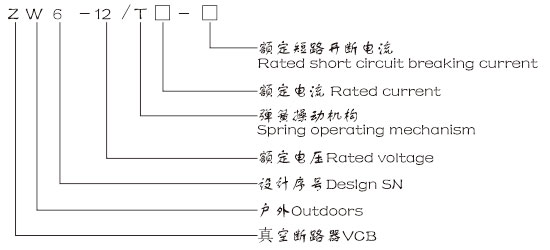

 MODEL & IMPLICATIONS

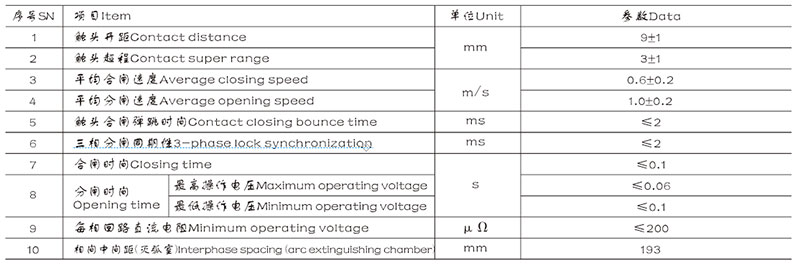

Assembly adjustment parameters of circuit breaker

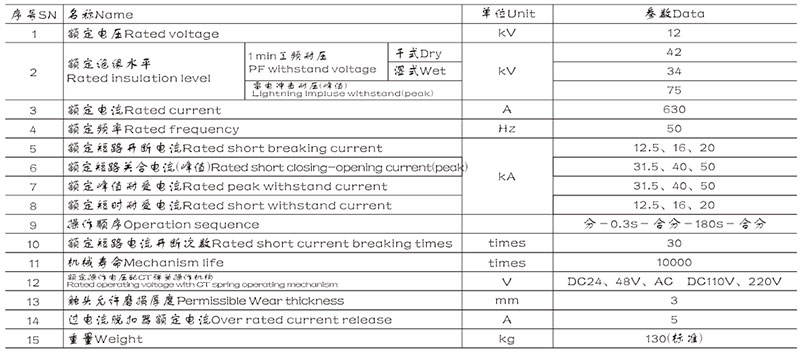

Rated technical parameters of circuit breakers

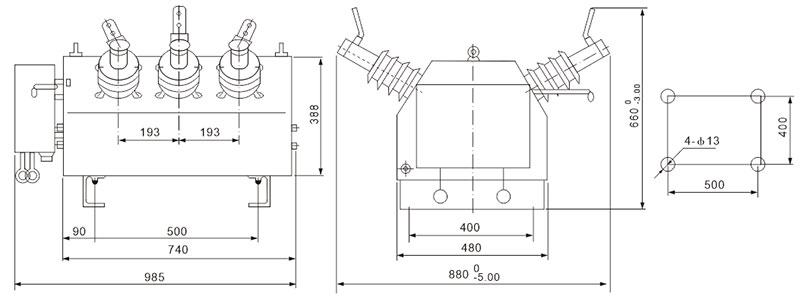

Outline & Installation Dimensions


Note: if the user has special requirements, can be determined after consultation with our factory.
