ZW32-24kV outdoor AC high voltage vacuum circuit breaker

SUMMARY

ZW32-24kV outdoor AC high voltage vacuum circuit breaker (hereinafter referred to as circuit breaker) is the rated voltage of 24kV, 50Hz three-phase AC outdoor power distribution equipment. The load current, overload current and short circuit current are mainly used in the power distribution system. The system is suitable for the protection and control of power distribution system in substation and industrial and mining enterprises, and is more suitable for rural power grid and frequent operation places.

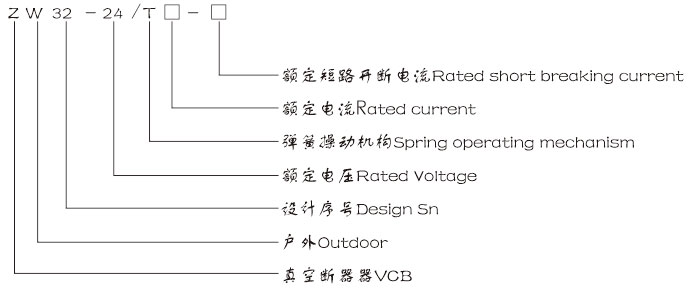

MODEL & IMPLICATIONS
